产品介绍
| 法兰直径 | 30 mm, |
| 电源电压 | 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30Vdc, |
| 连接类型 | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, |
| 轴直径 | 4 mm, 6 mm, 8 mm, |
| 脉冲 | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1440, 2000, 2048, 2500, |
| 输出电路 / 推拉 | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |

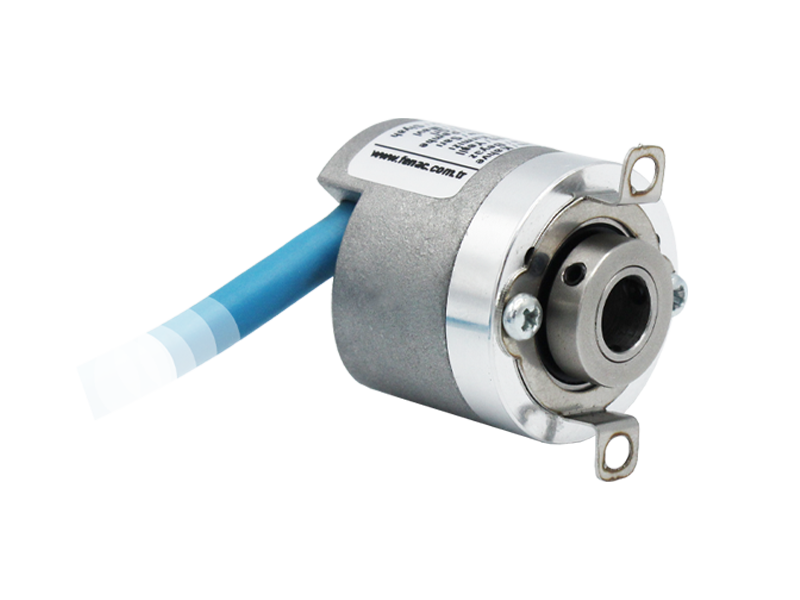

| 产品组 | Incremental Rotary Encoders, |
