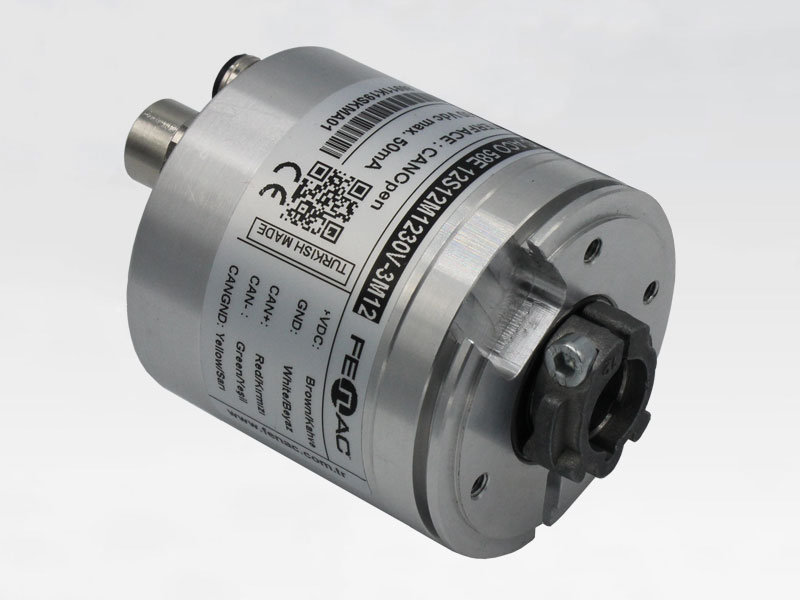

FNC AC58E 3M12系列编码器

产品介绍

一般特征

• Encoder single or multiturn / CANopen
• Magnetic sensing ( optional optical sensing)
• Magnetic single turn resolution : 12...19 bit (optional)
• Multi turn 4...32 bit
• End hollow shaft
• Extreme resistance to shock and vibration
• Resolution end zero point programmable

法兰直径	58 mm,
电源电压	5V : 5V in/out, 30V : 5-30V in/out,
连接类型	1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin,
轴直径	6 mm, 8 mm, 10 mm, 12 mm,
产品组	Absolute Standard Rotary Encoders,
界面	CANopen,
单圈分辨率	12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit,
多圈分辨率	4 bit, 5 bit, 6 bit, 7 bit, 8 bit, 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit, 20 bit, 21 bit, 22 bit, 23 bit, 24 bit, 25 bit, 26 bit, 27 bit, 28 bit, 29 bit, 30 bit, 31 bit, 32 bit
