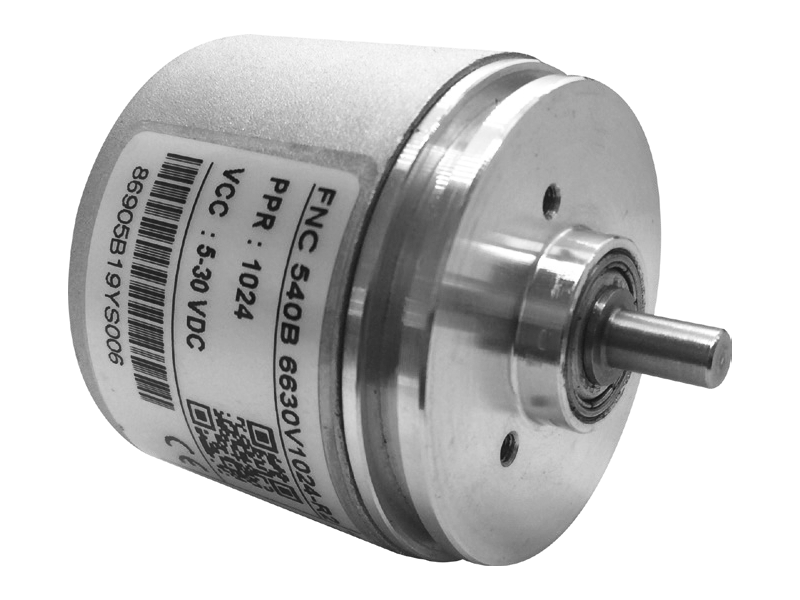

产品介绍
一般特征
Industry 50 mm size, 20 mm diameter clamping flange
Compatible with universal 40 mm encoders
Robust Mechanical and Electrical Construction
Protection up to IP67
Up to 5000 PPR max.
<300 kHz frequency
| 法兰直径 | 50 mm, |
| 电源电压 | 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30Vdc, |
| 连接类型 | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin, |
| 轴直径 | 6 mm, 8 mm, 10 mm, |
| 脉冲 | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 5000, |
| 输出电路 / 推拉 | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| 产品组 | Incremental Rotary Encoders, |
