产品介绍
- Industry 58 mm Standart Size, Clamping Flange
- Robust Mechanical and Electircal Construction
- Protection up to IP67
- Up to 25.000 PPR max.
- <300 kHz Freguency

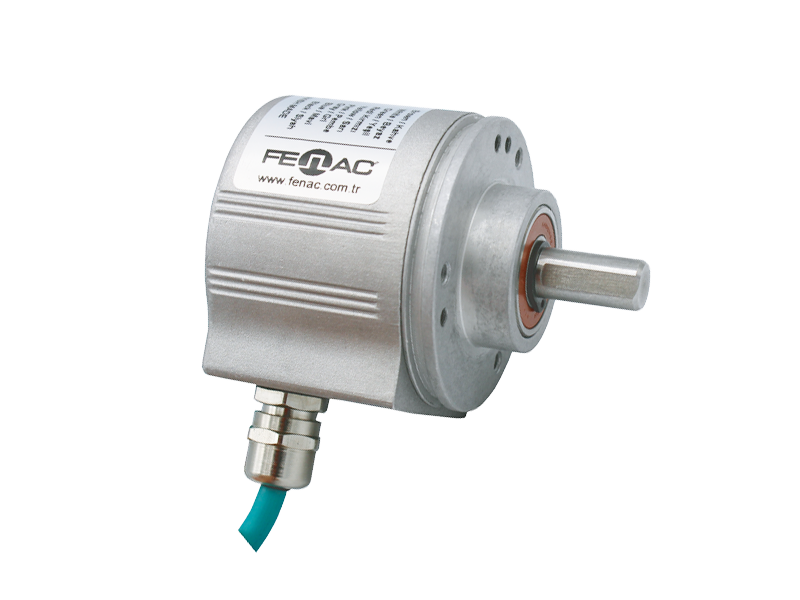

FNC58D系列编码器
一般特征
| 法兰直径 | 58 mm, |
| 电源电压 | 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30Vdc, |
| 连接类型 | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin, |
| 轴直径 | 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, |
| 输出电路 / 推拉 | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| 产品组 | Incremental Rotary Encoders, |
