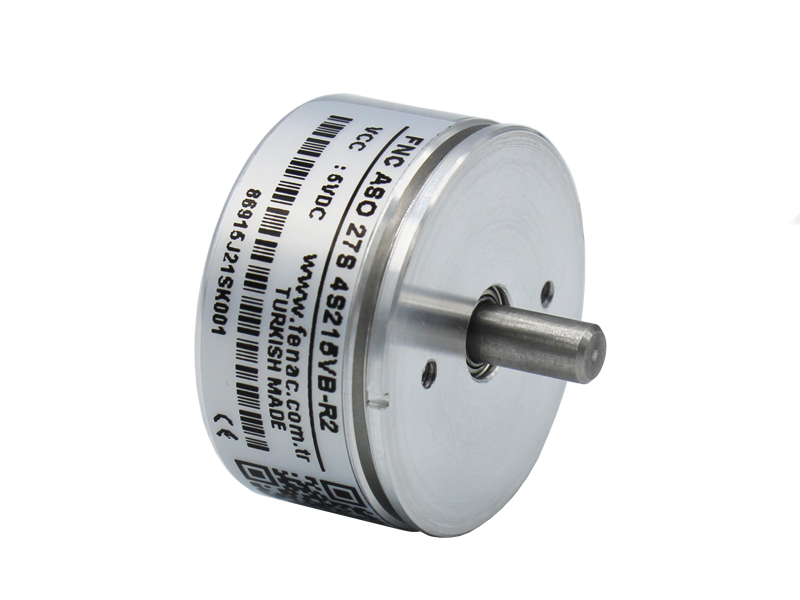

FNC AS27系系列编码器

产品介绍

一般特征

• Encoder single or multiturn / SSI-BISS
• Magnetic or optical sensing
• Single turn resolution up to 21 bit
• Synchro flange
• System monitoring with error /warning messaging
• Optional preset and direction input
• Small form factor with sense position data

法兰直径	27 mm,
电源电压	30V : 5-30V in/out,
连接类型	1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin,
轴直径	6 mm, 8 mm, 10 mm,
产品组	Absolute Standard Rotary Encoders,
界面	SSI, BISS,
单圈分辨率	9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit, 20 bit, 21 bit,
