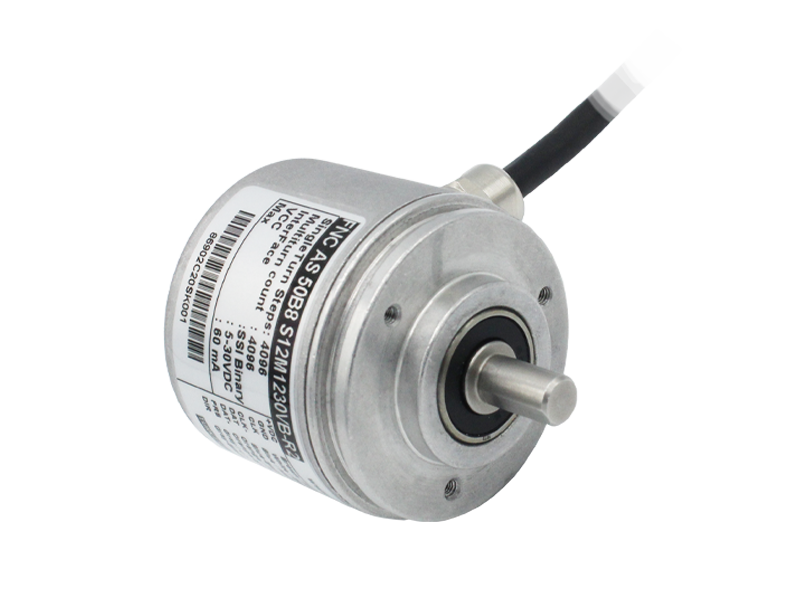

FNC AS50B系列编码器

产品介绍

一般特征

• Encoder single or multiturn / SSI-BISS
• Magnetic or optical sensing
• Single turn resolution up to 21 bit
• Multiturn 0...32 bit
• Clamping flange
• Permanent check of code continuity
• Extreme resistance to shock and vibration
• Encoder with electronic reset

法兰直径	50 mm,
电源电压	10 - 30Vdc,
连接类型	1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin,
轴直径	6 mm, 8 mm, 10 mm,
产品组	Absolute Standard Rotary Encoders,
界面	SSI, BISS,
单圈分辨率	9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit, 20 bit, 21 bit,
多圈分辨率	1 bit, 2 bit, 3 bit, 4 bit, 5 bit, 6 bit, 7 bit, 8 bit, 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, 17 bit, 18 bit, 19 bit, 20 bit, 21 bit, 22 bit, 23 bit, 24 bit, 25 bit, 26 bit, 27 bit, 28 bit, 29 bit, 30 bit, 31 bit, 32 bit,
