产品介绍

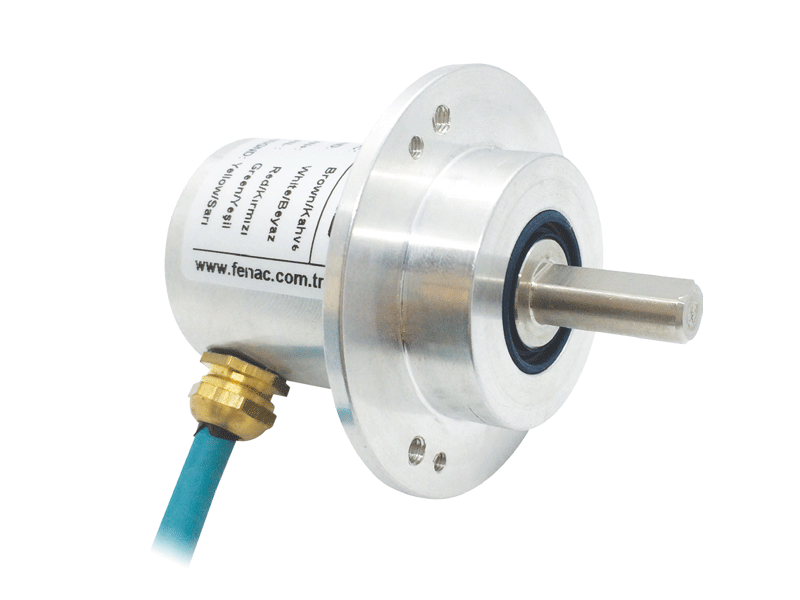

- Encoder single - or multiturn / SSI - BISS
- Magnetic Sensing
- Magnetic single turn resolution: 9 ... 14 bit
- Multi-turn 0...32 bit
- Clamping flange or synchro flange
- Permanent check of code continuity
- Extreme resistance to shock and vibration
- Encoder with electronic reset
一般特征
| 法兰直径 | 58 mm, |
| 电源电压 | 5V : 5V in/out, 10 - 30Vdc, |
| 连接类型 | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin, |
| 轴直径 | 6 mm, 8 mm, 10 mm, |
| 产品组 | Absolute Standard Rotary Encoders, |
| 界面 | SSI, BISS, |
| 单圈分辨率 | 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, |
| 多圈分辨率 | 1 bit, 2 bit, 3 bit, 4 bit, 5 bit, 6 bit, 7 bit, 8 bit, 9 bit, 10 bit, 11 bit, 12 bit, 13 bit, 14 bit, 15 bit, 16 bit, |
