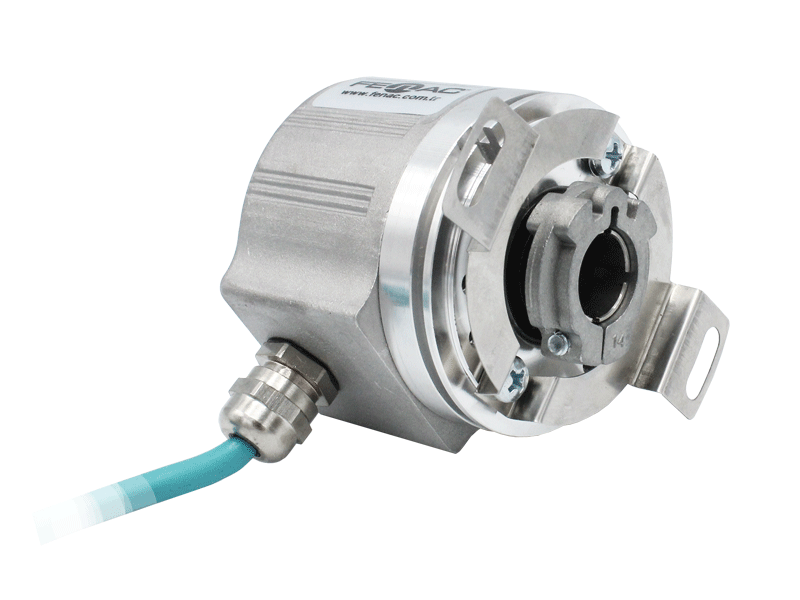

FNC ST 58E Analog Output Encoder

产品介绍

一般特征

• Programmable measuring range
• Industry 58 mm hollow shaft version
• Robust mechanical and electrical construction
• Protection up to IP67
• 0-10V voltage / 4-20 mA current output

法兰直径	58 mm,
电源电压	5V : 5V in/out, 30V : 5-30V in/out,
连接类型	1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, M12/5pin,
轴直径	4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 15 mm,
产品组	Absolute Analog Encoders,
模拟输出类型	0 - 5V, 0 - 10V, 0 - 20 mA, 4 - 20 mA,
界面	Analog,
