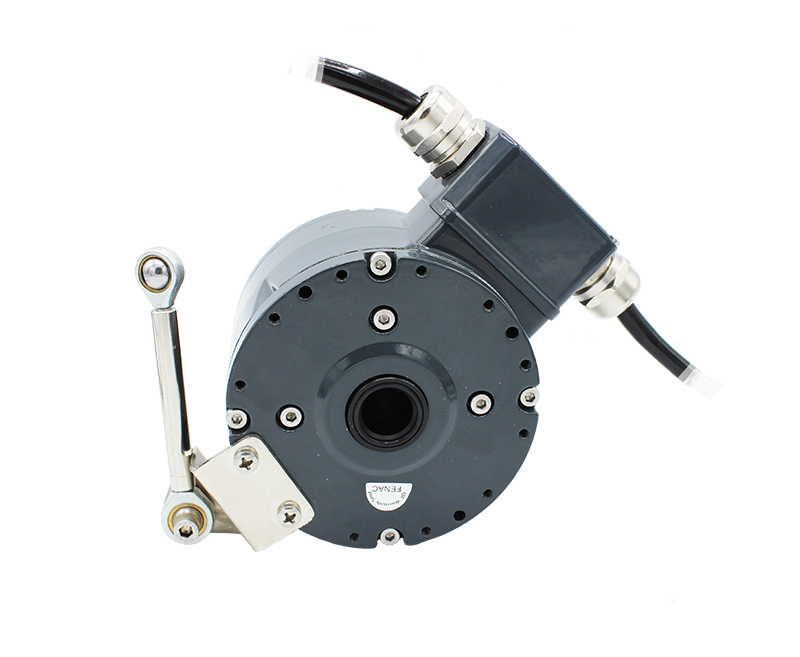

FHD H100系列编码器V1

产品介绍

一般特征

• Robust, compact housing
• Two bearings with the large distance
• High shaft load to 400N
• Highest operating speed 10000 rpm
• Terminal box, M23 connector, cable options

法兰直径	100 mm,
电源电压	5V : 5V in/out, 30V : 5-30V in/out,
连接类型	M23/12pin,
轴直径	12 mm, 14 mm, 16 mm, 17 mm,
脉冲	1000, 1024, 2000, 2048, 4096, 5000, 10000,
输出电路 / 推拉	A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
产品组	Heavy Duty Rotary Encoders,
